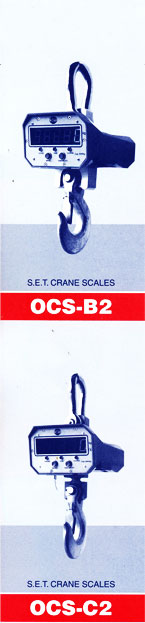

ORTHOPTIC CRANE SCALE
 |
OCS-B2, OCS-C2
Main Features
- High integrity reliability.
- Excellent dynamic weighing ability, does not subject to the influence of shaking.
- Uniquely intelligent charging protection function, preventing from discharging and overcharging, making the lifetime of the battery much longer.
- Optional remote controller for convenient operation.
- Automatic shutoff.
- High-luminance, low-luminance and auto adjusting (needs setting).
- Electricity consumption saving design, making the electricity consumption of the circuit board much lower.
- Accumulation, auto accumulation, taring, long-distance taring, overload alarm and convenient operation, etc.
Technical Parameter
| Weighing Accuracy |
Comply with OIML (III) |
| Operation time (with fully charged battery) |
60 Hours |
| Safe Over-Load |
150%F.S |
| Damaging Over-Load |
300%F.S |
| Working Temperature Range |
-10~50°C |
| Operation Humidity |
<95%R.H |
| Dimension of Display |
5 Digits 30mm(1.2") LED |
| Stability Time of Reading |
<5.0 S |
| Controlling Distance |
10-15m |
Main Specification
| Dimension of B2 and C2 series (mm) |
Weight(kg) |
| Capacity |
Division |
Length |
Ring radian |
Length Width |
Scale casing height |
Scale casing lenght |
Width |
Lifting book |
|
|
| (t) |
(kg) |
A |
B |
C |
D |
E |
F |
G |
B2 |
C2 |
| 2 |
0.5/1 |
480 |
103 |
58 |
130 |
130 |
190 |
50 |
10.9 |
10 |
| 3 |
0.5/1 |
480 |
103 |
58 |
130 |
130 |
190 |
50 |
10.9 |
10 |
| 5 |
1/2 |
595 |
136 |
90 |
130 |
130 |
190 |
66 |
16 |
15.2 |
| 10 |
2/5 |
650 |
138 |
90 |
160 |
290 |
235 |
66 |
23.8 |
22.1 |
| 15 |
5 |
965 |
210 |
98 |
160 |
290 |
235 |
82 |
55 |
/ |
| 20 |
10 |
1050 |
210 |
127 |
160 |
290 |
235 |
108 |
73 |
/ |
| 30 |
10 |
1380 |
250 |
146 |
160 |
290 |
235 |
130 |
85 |
/ |
|
 |

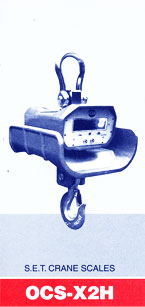

OCS-X2H
Main Features
6V rechargeable power supply, free of maintenance
60 hours durable function
LED display screen, clear in darkness
Wireless / remote zero, simple operation
6 national patents
HIGH TEMPERATURE
OCS-X2H (Thermal insulation crane scale): has the same function as OCS-X2, can be used under high temperature environment, the proper distance between the scale and the hoist hot objects: 1400°C - 1.8m: 1600°C - 2.0meatures
Main Specification
| Precision |
Level 3 |
| Safe over-load |
150% F.S |
| Damaging over-load |
300% F.S |
| Application temperature range |
1400° 1.8m ~ 1600° 2.0m |
| Relative humidity |
< 90%RH |
| Word height |
30mm / 5 bits |
| Stability of reading |
< 5 seconds |
| Control distance |
10 ~ 15m |
Main Specification
| Capacity |
Resolution |
Length |
Ring radian |
Ring Width |
Shell height |
Shell length |
Width |
hook |
|
| (t) |
(kg) |
A |
B |
C |
D |
E |
F |
G |
X2H |
| 1 |
0.5 |
545 |
100 |
55 |
160 |
340 |
235 |
40 |
16.2 |
| 2 |
1 |
545 |
100 |
55 |
160 |
340 |
235 |
40 |
16.2 |
| 3 |
1 |
545 |
100 |
55 |
160 |
340 |
235 |
40 |
16.2 |
| 5 |
2 |
695 |
120 |
90 |
160 |
340 |
235 |
50 |
26.8 |
| 10 |
5 |
835 |
120 |
90 |
160 |
340 |
235 |
60 |
38.2 |
| 15 |
5 |
965 |
210 |
135 |
160 |
340 |
235 |
90 |
63 |
| 20 |
10 |
1015 |
210 |
135 |
160 |
340 |
235 |
90 |
68 |
|
|
