Axle Weigher



RW-PLZ

Road Weigher

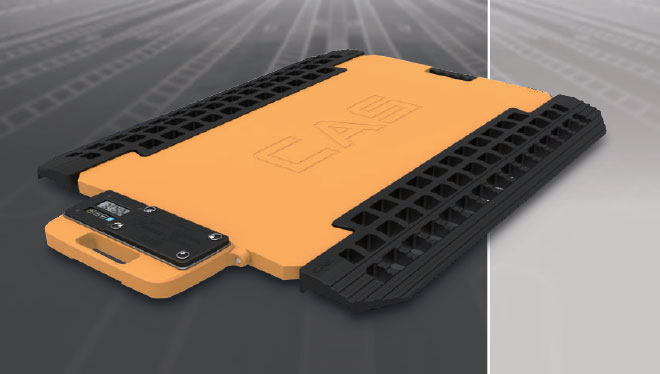

RW-PLZ is easy portable set of vehicle weighing scale that is usually used to weigh the road
vehicles. RW-PLZ consists of weighing platform scale and indicator, and both are designed
to endure rough environment.

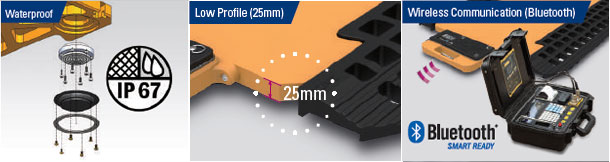

Waterproof Structure (IP67, CAPS Waterproofing upgraded)
LOADCELL : CPAS LOADCELL
INDICATOR(Built-in type) : MAIN PCB ASS’Y, BATTERY

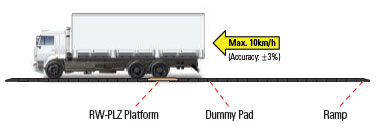

Weighing-in-Motion (WIM)
- RW-PLZ has both static and dynamic weighing(Weighing in Motion) function.
- Via WIM function, users can conveniently measure a vehicle’s weight.
- In case of WIM, dummy pads are required and accuracy is +/-3%
when vehicle speed is under 10km/h

RW-5002PL

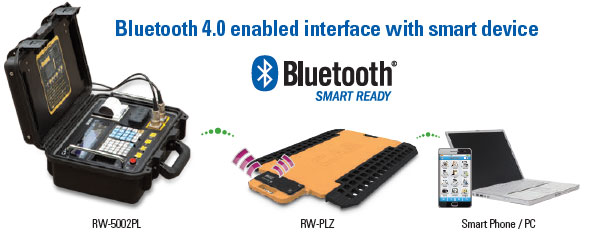

Wireless Communication System
Users can measure a weight via wireless communication (Bluetooth) much easier and more comfortable than via a wire communication, and maintenance cost of wire will be reduced. Also, RW-5002PL indicator can be connected up to 12 RW-PLZ platforms simultaneously.



Built-in Thermal Printer
Built-in thermal printer enables to print out various contents such as company,
inspector, driver and weight data easily.

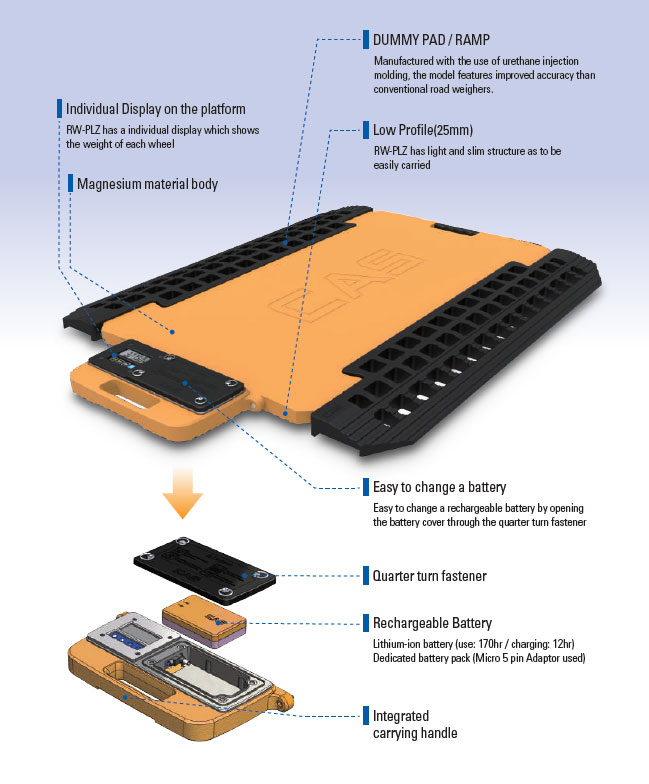

PAD

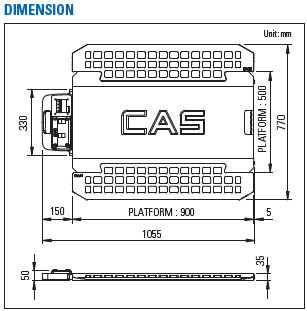

SPECIFICATIONS (BODY)

Platform Size (mm) 900x500x34 700x500x34 500x400x34
Body Weight (kg) 30kg or less
(incl. Display Module)
25kg or less
(incl. Display Module)
20kg or less
(incl. Ramp, Display Module)
CAPA(ton) 20, 15, 10 15, 10, 5 5, 2, 1
Division(kg) 20, 20, 10 20, 10, 5 5, 2, 1
Protection Class IP67 or higher



SPECIFICATIONS (DISPLAY MODULE)

DISPLAY 5digit LCD (excl. “-”), 15mm high digits, backlight
KEY On/OFF, Zero, Sum (kg/lb), Light
Protection Class IP67 or higher
Communication Type BLE
Communication Distance 100m or greater
A/D Conversion Speed Static weighing: 10 times/sec,
Dynamic weighing: 100 times/sec
Battery Power 3.7V / 4Ah (Li-ion 9,000mAh)
Run Time / Charge Time 170 hrs / 12 hrs
Charging Type Battery removable type
Content of Display Refer to Sheet for detail of display
Main Functions Set weight dependent speed (low speed ~ high speed)
Set auto calibration scope
Set dynamic or static weight (WIM) / WIM spec:
Accuracy +/- 3% in motion no less than 10 km/h
When WIM is enabled, displays SLOW or FAST depending on vehicle incoming speed
Option A structure without display



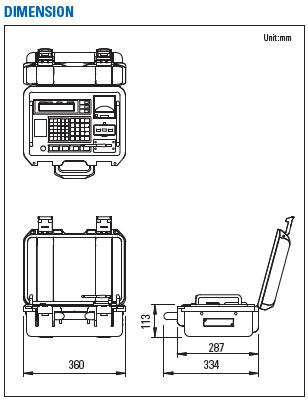

INDICATOR

SPECIFICATIONS

DISPLAY GRAPHIC LCD WITH BACKLIGHT
Battery power Use conventional RW-5002PL battery
Use time b/w charges Up to 40 hours
Charging 8 hours
Printer Thermal
Communication type BLE
Interconnect platforms up to 12 pcs
Weight (kg) 4.5
Option Cigar jack power
DATA communication type RS-232C / USB (for data backup)
Memory Large memory capacity of 10,000 or more data sets based on 6 truck axles
PC PROGRAM Store/manage data thru USB or RS-232C
App Check/save weights via interface with indicator or PAD
Certification EMC certified locally
